NEW QUESTION # 25
When securing the PCIe tray, why must it be screwed in at one end of the chassis first before installing another tray at the opposite end?
- A. Because the tray will break
- B. Because the tray will not function
- C. Because the tray will get pushed out
- D. Because the cables in the tray will get in the way
Answer: C
Explanation:
Why Secure One End of the PCIe Tray First?
* TheSupermicro MI300X chassis is designed for modular tray installation, meaningsecuring one end firstensures:
* Proper alignment of PCIe slots and connectors
* Stable mountingto prevent unwanted movement
* Prevention of unnecessary strain on installed expansion cards
What Happens If Both Ends Are Handled at the Same Time?
* ThePCIe tray may shift out of alignment, making it difficult to properly install other components.
* Misalignment can cause:
* PCIe devices to not seat properly
* Power or data cables to be obstructed
* Increased risk of mechanical damage during reinstallation
Step-by-Step Correct Installation Process:
#Step 1:Align the PCIe tray with its designated mounting slots.#Step 2:Secure screws onone end firstto hold the tray in place.#Step 3:Adjust the other end and ensureproper seatingbefore fully tightening all screws.# Step 4:Reconnect all PCIe cables and verify system connectivity.
Why Other Options Are Incorrect?
* B (Cables getting in the way)# While cable management is important, the main issue istray movement
, not cable obstruction.
* C (Tray will not function)# The tray will functiononce properly seated, butincorrect installation can lead to PCIe misalignment.
* D (Tray will break)# The tray is designed for durability; it will not break unlessexcessive force is applied.
Official Documentation Reference:
* Supermicro AS-8125GS-TNMR2 Service Guideconfirms thattrays must be secured at one end first to ensure proper alignment.
NEW QUESTION # 26
In the motherboard tray, the AOM bracket is partially covered by the support bar. So, you'll need to remove the support bar first before you can remove the AOM bracket. True or False?
- A. True
- B. False
Answer: A
Explanation:
Why Must the Support Bar Be Removed First?
* Thesupport baris areinforcement structureinside the chassis that providesmechanical stabilityto components, including theAOM bracket.
* Since the AOM bracket is partially covered by the support bar, you mustremove the bar firstto gain full access.
Step-by-Step Removal Process:
#Step 1:Remove the screws securing the support bar.#Step 2:Carefully lift and remove the support bar without tilting it.#Step 3:Now, unscrew and remove the AOM bracket.
Why is False Incorrect?
* IfFalse were correct, it would suggest that the AOM bracket can be removedwithout touching the support bar, which isnot possibledue to obstruction.
Official Documentation Reference:
* Supermicro AS-8125GS-TNMR2 Disassembly Manualconfirms that thesupport bar must be removed first before accessing the AOM bracket.
NEW QUESTION # 27
In the example system configuration shown in the video, is there an AOM card in the right AOM bracket?
- A. Yes
- B. No
- C. Maybe
- D. I didn't watch the video
Answer: B
Explanation:
TheAOM (Add-On Module) bracketis used to mount optional components like:
* RAID controllers
* Additional networking interfaces
* BMC/IPMI modules
In theexample system shown in the video, theright AOM bracket does not contain an AOM card. This is because:
* Supermicro's default system configurations do not always ship with optional AOM cards.
* Theleft AOM bracketusually housesoptional RAID or networking expansions, but theright bracket remains unoccupiedunless a specific expansion module is installed.
Official Documentation Reference:
* SupermicroHardware Deployment Guideconfirms that theright AOM bracket is optionalandnot pre- installedin base configurations.

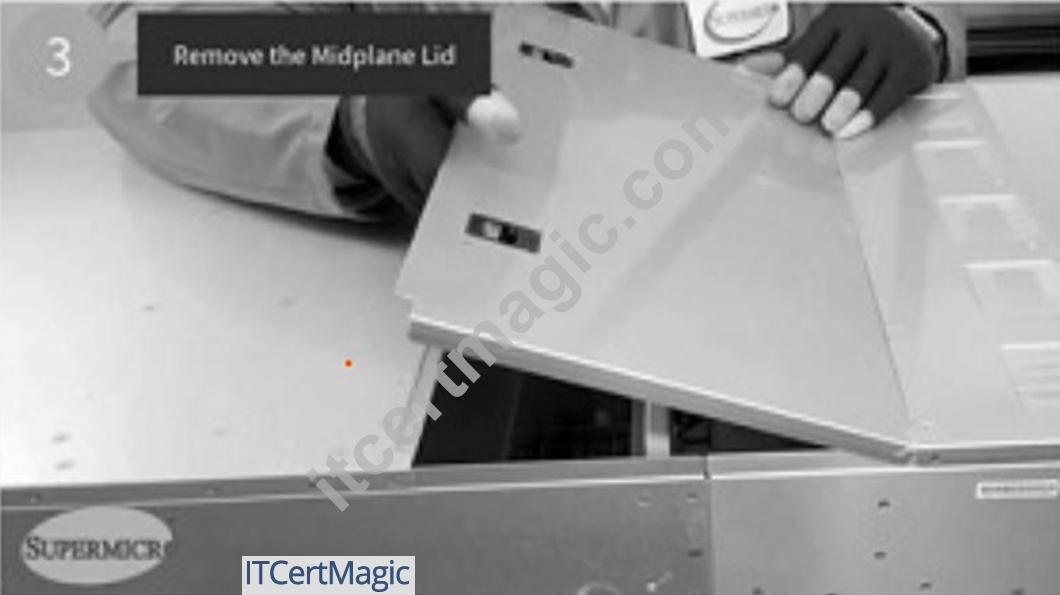

NEW QUESTION # 28
Exhibit:
To remove the midplane lid on the AS-8125GS-TNMR2 system, use your fingers to push in on the two handles toward the PCIe tray, then slowly lift the midplane lid up and out of the chassis at an angle.
True or False?
- A. True
- B. False
Answer: A
Explanation:
* Themidplane lid removal processis designed to betool-freeand follows aspecific sequence to avoid damage.
* Thecorrect methodis:
* Push in on the two handleslocated near thePCIe tray.
* Slowly lift the midplane lid up, ensuring it does not catch on other components.
* Remove the lid at an angleto avoid damaging adjacent connectors.
Why this method is used?
* Theangled removalhelpsavoid contact with fragile connectorson the midplane.
* Forcing the lid straight upcould damage PCIe slots or motherboard connectors.
Official Documentation Reference:
* Supermicro AS-8125GS-TNMR2 Disassembly Manualdetails thecorrect method for removing the midplane lid.
NEW QUESTION # 29
Once you have removed all 12 screws that secure the motherboard to the motherboard tray, what is the proper way to remove the motherboard?
- A. Make sure to touch the pins and shove the motherboard out of the tray.
- B. Use one hand the entire time to remove the motherboard tray and hold the motherboard in the bottom center as if you're holding a pizza.
- C. Avoid touching the pins and carefully slide the motherboard slightly out of the rear of the tray, then place one hand underneath the rear of the tray and continue sliding the motherboard out of the tray without tilting it up or down.
- D. Tilt the chassis to shake it out of the tray.
Answer: C
Explanation:
Removing the motherboardrequires careful handlingto preventbending pins, PCB damage, or static discharge.
Correct Removal Process:
* First, remove all 12 screws securing the motherboard.
* Avoid touching any exposed pins or contacts.
* Carefully slide the motherboard slightly out of the rear of the tray.
* Support it with one hand underneath to prevent bending.
* Continue sliding it out without tilting it.
Why other options are incorrect?
* A (Touch pins & shove motherboard)# Touching pins cancause electrostatic damageandforcing it out can damage components.
* B (Hold like a pizza)# Usingone handdoes not provide enough support, increasing the risk of bending or dropping the motherboard.
* C (Tilt chassis & shake it out)# This is acompletely impropermethod and canseriously damage connectors and PCB components.
Official Documentation Reference:
* Supermicro MI300X System Removal Guideadvises toslide the motherboard out carefully while supporting it underneath.
NEW QUESTION # 30
After removing the screws from the midplane bracket, what cables must be removed?(Choose 2 answers.)
- A. SATA cable
- B. Power cable
- C. Flat panel/ribbon cable
- D. MCIO cable
Answer: C,D
Explanation:
Themidplane bracketinSupermicro MI300X GPU systemsconnects multiple crucial components, including storage, PCIe devices, and power distribution systems.
Why must the MCIO and Flat Panel/Ribbon cables be removed?
* MCIO Cable (Option B)#
* MCIO (Multi-lane Cable I/O)cables are responsible forhigh-speed NVMe communication between the motherboard and storage components.
* These cables must bedisconnected before midplane removal, asforcing them out without removal can cause connector damage.
* Flat Panel/Ribbon Cable (Option C)#
* Theflat panel/ribbon cableis used forsystem communication, front panel connectivity, or sensor data transmission.
* If not removed, it can be torn or pinched, leading tomalfunctioning front panel indicators, buttons, or management controllers.
Incorrect Answers Explained:
* A (Power cable)# Power cables are usuallysecured independentlyand arenot directly attached to the midplane bracket. Removing them isnot a required stepfor midplane bracket removal.
* D (SATA cable)# SATA cables arefor legacy storage systemsanddo not need to be disconnected unless working on SATA-specific backplanes.
Official Documentation Reference:
* SupermicroService ManualforAS-8125GS-TNMR2explicitly states thatMCIO cables and ribbon cables must be removed before handling the midplane bracketto preventsystem damage.
NEW QUESTION # 31
What equipment is required in order to remove the heatsink from the motherboard tray?
- A. T20 Torx bit
- B. T40 Torx bit
- C. PH2 Phillips screwdriver
- D. T30 Torx bit
Answer: D
Explanation:
To remove theheatsink from the motherboard tray,a T30 Torx bit is required. This tool ensuresproper torque applicationandprevents damageto both the heatsink and the motherboard.
Why a T30 Torx bit is necessary?
* Supermicro MI300X GPU systems use precision heatsink retention mechanisms.
* Theheatsink screws are secured with factory torque settingsand require aT30 Torx bitfor safe removal.
* Using an incorrect tool (Phillips screwdriver, T20, or T40) can strip the screw heads, making it difficult to remove the heatsink without causing damage.
Incorrect Answers Explained:
* A (PH2 Phillips screwdriver)# Not strong enough for heatsink screws, which requirehigh torquefor proper seating.
* C (T20 Torx bit)# Toosmall, risksstrippingthe screws.
* D (T40 Torx bit)# Toolarge, does not fit the heatsink screws.
Official Documentation Reference:
* Supermicro MI300X Service Manualspecifies that aT30 Torx bitmust be used to remove the heatsink without damaging the motherboard.
NEW QUESTION # 32
In order to remove the midplane from the AS-8125GS-TNMR2 system, and after you remove all the PSUs, you will need to disengage 3 trays. What is the correct order for disengagement?
- A. Disengage the GPU tray first, then the motherboard tray, and the PCIe tray last.
- B. Disengage the motherboard tray first, then the PCIe tray, and the GPU tray last.
- C. Disengage the PCIe tray first, then the motherboard tray, and the GPU tray last.
- D. Disengage the PCIe tray first, then the GPU tray, and the motherboard tray last.
Answer: D
Explanation:
Thecorrect order for removing trays before midplane removalis:
* Disengage the PCIe tray first
* This tray must be removed first becauseit provides access to the underlying system components
.
* Remove the GPU tray
* TheGPU tray sits between the PCIe and motherboard traysand must be disengaged after PCIe components are cleared.
* Remove the motherboard tray last
* The motherboard tray isthe final component before midplane removal.
* Removing it lastensures full accessto the system componentswithout obstructing critical connections.
Why other options are incorrect?
* B (Motherboard before GPU tray)# The motherboard tray must be removedlastto avoid disconnecting system-critical connections too early.
* C (Motherboard tray first)# Removing the motherboard firstrisks damagingPCIe and GPU components.
* D (GPU tray first)# TheGPU tray is dependent on the PCIe tray being removed first, making this order incorrect.
Official Documentation Reference:
* Supermicro AS-8125GS-TNMR2 System Removal Guideoutlines the correct order fortray disengagement before midplane removal.

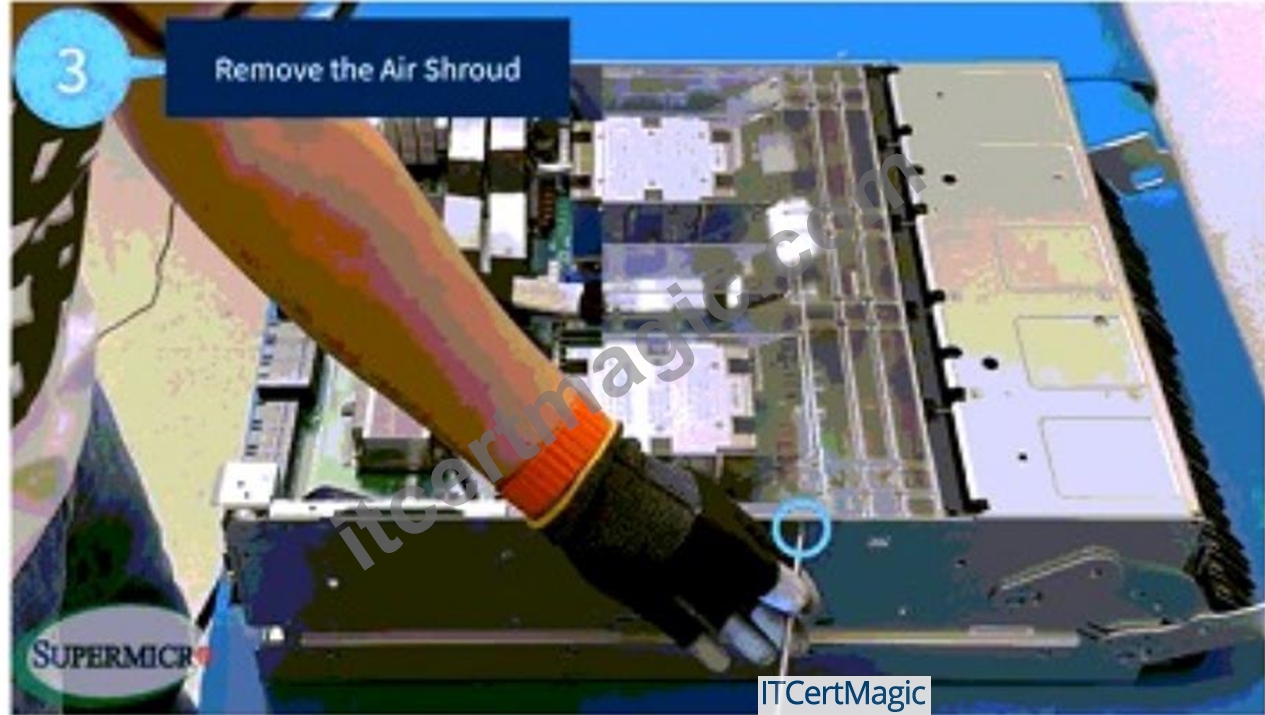

NEW QUESTION # 33
Exhibit:
Where are the 2 screws located before you can remove the air shroud?
- A. On both sides of the PCIe tray
- B. On both sides of the GPU tray
- C. On both sides of the motherboard tray
- D. On top of the motherboard tray
Answer: C
Explanation:
Theair shroudis a crucial component in theSupermicro MI300X GPU system, designed todirect airflow efficientlyover high-performance GPUs and CPUs.Before removing the air shroud, two screws must be removed, and they are located on both sides of the motherboard tray.
Why are these screws important?
* They secure the air shroud to the chassis, preventing unwanted movement.
* Removing them ensures the air shroud can be lifted safely, without damaging cooling pathways.
* They prevent vibrations from GPU cooling fans from dislodging the shroud over time.
Incorrect Answers Explained:
* A (On top of the motherboard tray)# Incorrect, as the screws are not mounted on top but on thesides of the motherboard tray.
* C (On both sides of the PCIe tray)# The PCIe tray does not secure the air shroud.
* D (On both sides of the GPU tray)# The GPU tray does not directly hold the air shroud in place.
Official Documentation Reference:
* Supermicro AS-8125GS-TNMR2 Cooling System Guidestates that theair shroud is secured by two screws on both sides of the motherboard tray.

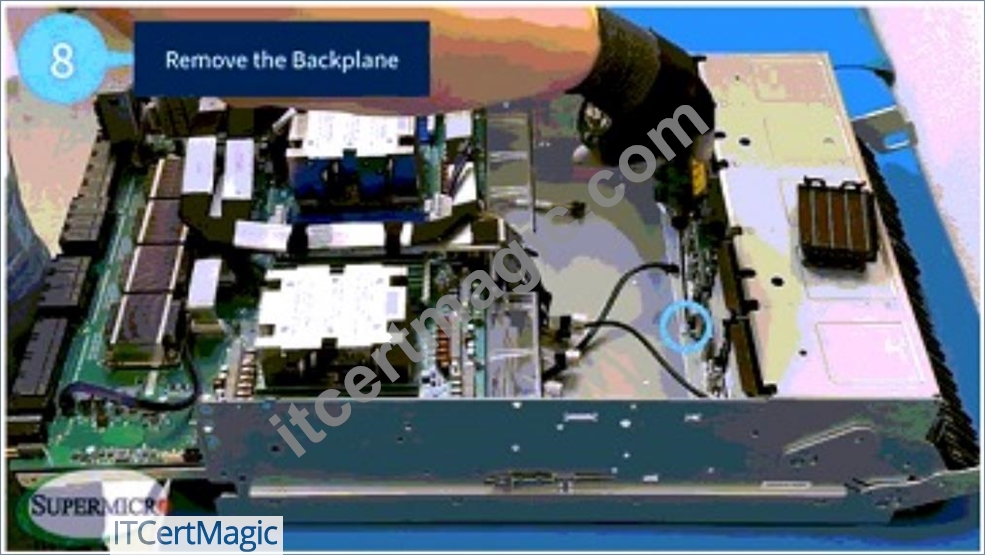

NEW QUESTION # 34
You must remove the motherboard tray from the chassis before you can access the NVMe backplane.
True or False?
- A. True
- B. False
Answer: A
Explanation:
InSupermicro MI300X GPU systems, theNVMe backplane is located behind the motherboard tray, meaning the tray must be removed first.
Why is this step necessary?
* The NVMe backplane is physically secured behind the motherboard trayto support high-speed PCIe connectivity.
* Removing the motherboard tray provides clear accessto NVMe connectors and MCIO cables.
* Skipping this step may cause unnecessary strain on cables, leading to potential connector damage.
Official Documentation Reference:
* Supermicro Service Guide for NVMe Systemsconfirms that themotherboard tray must be removed firstbefore working on the NVMe backplane.
NEW QUESTION # 35
To remove the midplane, use both hands to lift the midplane bracket straight up and out of the chassis. True or False?
- A. True
- B. False
Answer: A
Explanation:
Understanding the Midplane in Supermicro MI300X Systems
Themidplane in the Supermicro MI300X GPU systemacts as acentral connection hubthat links various system components, such as:
* NVMe storage backplanes
* PCIe interconnects
* Power distribution pathways
* Motherboard to GPU communication lanes
Because of itsdelicate nature and multiple connectors,it must be removed carefullyto avoiddamaging fragile electrical contacts.
Correct Midplane Removal Process
Tosafely remove the midplane, follow theseSupermicro-recommendedsteps:
* Ensure all power is fully disconnected
* Shut down the systemproperly.
* Remove all power cablesanddisconnect all PSUs.
* Ground yourself using an anti-static wrist strapto preventelectrostatic discharge (ESD) damage to sensitive components.
* Detach all necessary trays and cables
* Disengage the PCIe tray, motherboard tray, and GPU trayto ensure clear access.
* Disconnect all MCIO cables, power cables, and ribbon cablesto prevent accidental pulling or tearing.
* Use both hands for removal
* Place both hands firmly on the midplane bracket.
* Lift the midplane bracket straight upto ensure a smooth removal process.
* Avoid angling or twisting the midplaneas this candamage its connector pins.
* Ensure no resistance is felt
* If the midplanedoes not lift easily,double-check for any remaining screws or connected cables before applying force.
Why Using Both Hands is Crucial?
* Prevents bending or flexing
* The midplane is alarge PCB with multiple connection points.Using both hands ensures even lifting pressure, preventing PCB bending.
* Avoids strain on connectors
* If removed at an angle, it canstress delicate connectors, leading to permanent damage.
* Ensures a firm grip
* Some components inside the systemcan be heavy. Using both handsensures stability and reduces risk of dropping.
Why Other Answers Are Incorrect?
* If False were correct, it would suggest improper handling techniques that can damage the system.
* Supermicro documentation clearly states that the midplane must be removed using both hands and in an upright motion.
Official Documentation Reference:
* Supermicro AS-8125GS-TNMR2 Disassembly Guideinstructs technicians to useboth hands and lift straight upto prevent damage.
NEW QUESTION # 36
When lowering the midplane bracket back into the chassis, what should you make sure to do with all the cables?
- A. Move only the ribbon cable out of the way as you lower the bracket.
- B. Move only the I2C cable out of the way as you lower the bracket.
- C. Move only the power cable out of the way as you lower the bracket.
- D. Move all the cables out of the way as you lower the bracket.
Answer: D
Explanation:
Why Must All Cables Be Moved Out of the Way?
Themidplane bracket in Supermicro MI300X GPU systemshousesmultiple power and data connections.
If cables are not movedout of the way before lowering the bracket, the following issues can occur:
* Cable Pinching or Crushing
* If cables are trapped beneath the midplane,their insulation can get damaged, leading to potential short circuits or power failures.
* Improper Connector Alignment
* Misplaced cablesmay obstruct connector seating, preventingMCIO, PCIe, or NVMe connections from fully engaging.
* Potential Performance Issues
* If data cables are twisted or bent sharply,signal integrity issuesmay arise, causingintermittent connectivity failures.
Step-by-Step Safe Midplane Installation:
#Step 1:Identify all power and data cables before lowering the midplane bracket.#Step 2:Move all cables out of the way and neatly route them along their designated pathways.#Step 3:Slowly lower the midplane bracket into position, ensuring cables remain free from obstruction.#Step 4:Check that all connectors are accessible and that no cables are trapped under the bracket.
Why Other Options Are Incorrect?
* A (Only move the ribbon cable)# Other cables may still be in the way, risking damage.
* B (Only move the power cable)# Power cables are important, butdata cables must also be repositioned.
* C (Only move the I2C cable)# The I2C cable alone is not enough;all cables need clearance.
Official Documentation Reference:
* Supermicro AS-8125GS-TNMR2 Service Manualspecifies thatall cables must be moved before lowering the midplane bracket to avoid obstruction and damage.
NEW QUESTION # 37
Before removing the NVMe backplane, which component must be removed first?
- A. Motherboard Tray
- B. Power Supply Unit
- C. GPU Tray
- D. PCIe Expansion Cards
Answer: A
Explanation:
Why Must the Motherboard Tray Be Removed First?
TheNVMe backplane in Supermicro MI300X systemsis installedbehind the motherboard tray. This means themotherboard tray acts as a barrier, andit must be removed before gaining access to the NVMe backplane.
Step-by-Step Removal Process:
* Power Down and Disconnect Power Supply Units (PSUs)
* Turn off the system anddisconnect all power cablesto avoid electrical damage.
* Remove PCIe Expansion Cards(if applicable)
* Some systems have PCIe devicesmounted over the NVMe backplane, which must be removed first.
* Disengage the Motherboard Tray
* The motherboard tray must be unscrewed and carefully lifted outbefore accessing the NVMe backplane.
* Now, Remove the NVMe Backplane
* Once the motherboard tray is out, theNVMe backplane is fully exposed, allowing it to be removed.
Why Other Options Are Incorrect?
* A (GPU Tray)# The GPU tray isnot blocking direct accessto the NVMe backplane.
* C (Power Supply Unit)# The PSU isnot directly obstructingthe NVMe backplane, although it should be powered down.
* D (PCIe Expansion Cards)# These may need to be removedif installed over the NVMe backplane, but themotherboard tray is the primary component that blocks direct access.
Official Documentation Reference:
* Supermicro AS-8125GS-TNMR2 Installation Guideexplicitly states thatthe motherboard tray must be removed before handling the NVMe backplane.
NEW QUESTION # 38
Before removing the midplane from the AS-8125GS-TNMR2, you must disengage all the power supply units (PSUs) and dummy PSUs, as well as the PCIe tray, motherboard tray, and GPU tray. True or False?
- A. True
- B. False
Answer: A
Explanation:
Removing themidplanein aSupermicro MI300X GPU systemrequiresdisengaging multiple system trays and power componentsbeforehand.
Why is this necessary?
* Power must be fully disengaged before midplane removal
* The midplane is directly connected topower distribution units (PDUs).
* If power is not removed, it can causeshort circuits or hardware damage.
* PCIe, motherboard, and GPU trays block access
* These trays must be disengagedbefore removing the midplane, as they contain components directly connected to it.
* Dummy PSUs must also be removed
* Even inactive PSUs containlocking mechanismsthat must be disengaged.
Official Documentation Reference:
* Supermicro AS-8125GS-TNMR2 System Removal Guideconfirms thatPSUs, dummy PSUs, PCIe trays, motherboard trays, and GPU trays must be removed before handling the midplane.
NEW QUESTION # 39
Once you remove the midplane lid from the AS-8125GS-TNMR2 system, how many total screws must be removed from the sides of the chassis in order to remove the midplane bracket?
- A. 8 screws total (4 on each side of the chassis)
- B. 2 screws total (1 on each side of the chassis)
- C. 4 screws total (2 on each side of the chassis)
- D. 6 screws total (3 on each side of the chassis)
Answer: C
Explanation:
To remove themidplane bracketin theAS-8125GS-TNMR2 system, you must remove4 screws total(2 on each side of the chassis).
Why 4 screws?
* The midplane bracket is secured by 2 screws per sideto maintain its structural integrity.
* Loosening all 4 screws allows safe removal without excessive force.
* Forcing the bracket without removing the screws risks damaging the mounting points.
Incorrect Answers Explained:
* A (2 screws total)# Not enough, as screws on both sides must be removed.
* C (8 screws total)# More than necessary;only 4 screws hold the midplane bracket.
* D (6 screws total)# Incorrect count;only 2 screws per side are required.
Official Documentation Reference:
* Supermicro AS-8125GS-TNMR2 Installation Guideexplicitly states thattwo screws on each side (4 total) must be removed to release the midplane bracket.
NEW QUESTION # 40
Which two situations could occur if you forcefully shift the release lever without first unlocking the red lock?(Choose 2 answers.)
- A. The power supply unit can no longer be secured into the tray.
- B. All the answers are correct.
- C. You could permanently damage the lock on the power supply unit.
- D. The power supply unit will fail.
Answer: C,D
Explanation:
ForSupermicro MI300X GPU systems,removing the power supply unit (PSU) improperlycan lead to serious issues.
* Why the red lock exists?
* Thered locking mechanismensures that thePSU is properly securedin the system.
* Before disengaging the PSU, thered lock must first be unlockedto avoid damage.
* If you forcefully shift the release lever without unlocking the red lock:
* B: The power supply unit will fail# If the PSU is removed improperly, it can causeinternal damageto power connectors, resulting in PSUfailure or improper functioning.
* C: You could permanently damage the lock on the power supply unit# Thelocking mechanismis designed for smooth disengagement. Forcefully shifting the lever canbreak or warpthe lock, making itimpossible to secure the PSU back in place.
* Incorrect Answers Explained:
* A (All answers are correct)# This is incorrect becausenot all answers are valid.
* D (The PSU can no longer be secured into the tray)# This happensonly if the lock is damaged
, which is covered underoption C.
Supermicro's official documentation clearly statesthatunlocking the red lock firstis a critical step before removing or replacing the PSU.
NEW QUESTION # 41
Exhibit:
4 screws secure the backplane to the motherboard tray that you will need to remove, and they are spaced equidistant across the backplane. True or False?
- A. True
- B. False
Answer: A
Explanation:
Why Are the Screws Equidistant?
* Thebackplane in Supermicro MI300X systemsis alarge PCB (printed circuit board) that connects NVMe SSDs and PCIe devices to the motherboard.
* It is secured byfour screws placed equidistantlyto:
* Distribute mechanical stress evenly
* Ensure stability against vibrations
* Prevent warping or misalignment of connectors
Proper Removal of the Backplane Screws:
#Step 1:Identify and locate the4 securing screws on the backplane.#Step 2:Loosen them in across-pattern (diagonal pairs) to prevent stress buildup.#Step 3:Carefully lift the backplanestraight upto avoid bending connector pins.
Why This Layout Is Important?
#Equidistant screw spacing ensures even pressure distribution, preventing PCB flexing or cracking.# Improper screw removal (one side first) can cause misalignment or undue stress on connectors.
Why False Is Incorrect?
* IfFalse were correct, it would imply that screws are placedrandomly or unevenly, which isnot the case in Supermicro MI300X systems.
Official Documentation Reference:
* Supermicro AS-8125GS-TNMR2 Installation Manualconfirms thatthe backplane is secured with 4 evenly spaced screws for structural integrity.
NEW QUESTION # 42
Where is the one screw that needs to be removed in order to remove the AOM bracket?
- A. On the side of the motherboard tray
- B. On top of the fan tray
- C. On top of the hard drive tray
- D. On the rear of the power supply
Answer: A
Explanation:
Understanding the AOM Bracket in Supermicro MI300X Systems
TheAOM (Add-On Module) bracketis used to holdoptional expansion cards, such as:
* RAID controllers
* Additional network interface cards (NICs)
* BMC/IPMI modules for system management
Why is the Screw Located on the Side of the Motherboard Tray?
* The AOM bracket is secured to the chassis via a single screwthat is located on theside of the motherboard tray.
* This designkeeps the bracket firmly in placewhile still allowing foreasy removal when needed.
* Removing the screw first prevents unnecessary strain on the bracketand ensuressafe removal of the AOM card.
Why Other Options Are Incorrect?
* A (On top of the hard drive tray)# The hard drive tray does not secure the AOM bracket.
* B (On top of the fan tray)# Fans do not hold down the AOM bracket.
* D (On the rear of the power supply)# The power supplyis not directly connected to the AOM bracket.
Official Documentation Reference:
* Supermicro AS-8125GS-TNMR2 Expansion Module Guidespecifies that theAOM bracket is secured by a single screw located on the side of the motherboard tray.
NEW QUESTION # 43
......
Use Valid New SMI300XS Test Notes & SMI300XS Valid Exam Guide: https://www.itcertmagic.com/Supermicro/real-SMI300XS-exam-prep-dumps.html
SMI300XS Actual Questions Answers PDF 100% Cover Real Exam Questions: https://drive.google.com/open?id=1KsM1u3N9VOFhQY5-U51QUBWCQPXQkSZ0
