NEW QUESTION # 38

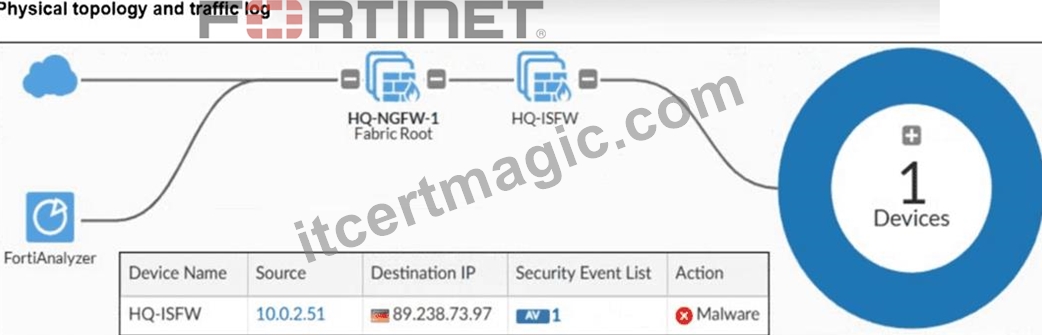

Refer to the exhibit.
A physical topology along with a traffic log is shown. You are using FortiAnalyzer to monitor traffic from the device with IP address 10.0.2.51, which is located behind the FortiGate internal segmentation firewall (ISFW) device. Unified threat management (UTM) is not enabled in the firewall policy on the HQ-ISFW device, and you are surprised to see a log with the action Malware, as shown in the exhibit. What are two reasons why FortiAnalyzer would display this log? (Choose two answers)
- A. Security rating is enabled in HQ-ISFW.
- B. HQ-ISFW is not connected to FortiAnalyzer and traffic must go through HQ-NGFW-1.
- C. UTM is enabled in the firewall policy in HQ-NGFW-1.
- D. HQ-ISFW is in a Security Fabric environment.
Answer: C,D
Explanation:
Comprehensive and Detailed 150 to 200 words of Explanation From Exact Extract of Enterprise Firewall 7.6 Administrator documents:
According to the Fortinet Security Fabric 7.6 documentation and FortiAnalyzer study materials, when multiple FortiGate devices are part of a Security Fabric, logs are typically sent to a centralized FortiAnalyzer for a unified view of the network.
In the provided exhibit, the topology shows HQ-NGFW-1 as the Fabric Root and HQ-ISFW as a downstream device. One of the key benefits of the Security Fabric (Option C) is topology-wide visibility, where logs from different devices are correlated.
The traffic log table shows a "Malware" action for traffic originating from 10.0.2.51 (located behind HQ-ISFW) destined for a public IP. If UTM is not enabled on the HQ-ISFW itself, it cannot generate an Antivirus (AV) log. However, because HQ-ISFW is part of the Security Fabric, the traffic eventually passes through the upstream device, HQ-NGFW-1, to reach the internet. If UTM is enabled on HQ-NGFW-1 (Option B), that device will inspect the traffic, detect the malware, and generate the security log. FortiAnalyzer then displays this log as part of the unified threat view, associating it with the original source and the inspection point in the fabric path.
NEW QUESTION # 39
Refer to the exhibit.
An HA configuration of an active-active (A-A) cluster with the same HA uptime shown.
You want HQ-NGFW-2 to handle the Core2 VDOM traffic.
Which modification must you make to achieve this outcome?
- A. Enable override in virtual duster 2 for HQ-NGFW-2.
- B. Change the priority from 120 to 200 for HQ-NGFW-2.
- C. Change the priority from 100 to 160 for HQ-NGFW-2.
- D. Reboot HQ-NGFW-2.
Answer: B
Explanation:
In an A-A setup using virtual clusters, each VDOM belongs to a vcluster and the device with the higher priority becomes the primary for that vcluster. For Core2, HQ-NGFW-1 currently has priority 150 and HQ-NGFW-2 has 120. To make HQ-NGFW-2 the primary for Core2, its vcluster-2 priority must be raised above 150, and increasing it to 200 achieves that.
NEW QUESTION # 40

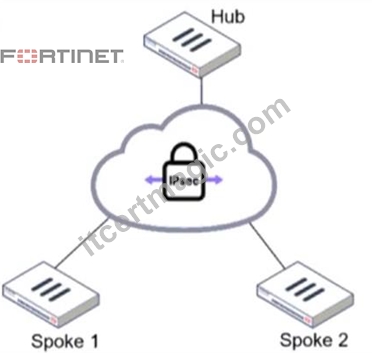

Refer to the exhibit.
An administrator is deploying a hub and spokes network and using OSPF as dynamic protocol.
Which configuration is mandatory for neighbor adjacency?
- A. Set network-type point-to-multipoint in the hub interface
- B. Set rfc1583-compatible enable in the router configuration
- C. Set bfd enable in the router configuration
- D. Set virtual-link enable in the hub interface
Answer: A
Explanation:
In a hub-and-spoke topology using OSPF over IPsec VPNs, the point-to-multipoint network type is necessary to establish neighbor adjacencies between the hub and spokes. This network type ensures that OSPF operates correctly without requiring a designated router (DR) and allows dynamic routing updates across the IPsec tunnels.
NEW QUESTION # 41
An administrator configured the FortiGate devices in an enterprise network to join the Fortinet Security Fabric. The administrator has a list of IP addresses that must be blocked by the data center firewall. This list is updated daily.
How can the administrator automate a firewall policy with the daily updated list?
- A. With FortiAnalyzer
- B. With FortiNAC
- C. With a Security Fabric automation
- D. With an external connector from Threat Feeds
Answer: D
Explanation:
The best way to automate a firewall policy using a daily updated list of IP addresses is by using an external connector from Threat Feeds. This allows FortiGate to dynamically retrieve real-time threat intelligence from external sources and apply it directly to security policies.
By configuring Threat Feeds, the administrator can:
* Automatically update firewall policies with the latest malicious IPs daily.
* Block traffic from those IPs in real-time without manual intervention.
* Integrate with FortiGuard, third-party threat intelligence sources, or custom feeds (CSV, STIX/TAXII, etc.).
NEW QUESTION # 42

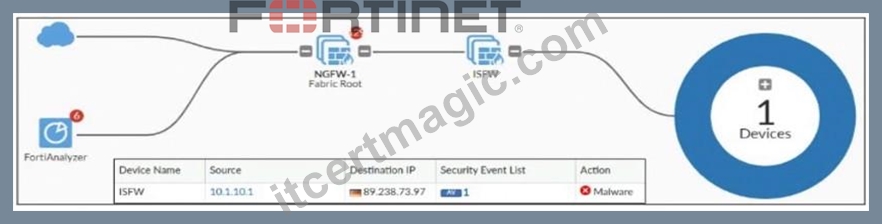

Refer to the exhibit, which shows a physical topology and a traffic log.
The administrator is checking on FortiAnalyzer traffic from the device with IP address 10.1.10.1, located behind the FortiGate ISFW device.
The firewall policy in on the ISFW device does not have UTM enabled and the administrator is surprised to see a log with the action Malware, as shown in the exhibit.
What are the two reasons FortiAnalyzer would display this log? (Choose two.)
- A. ISFW is in a Security Fabric environment.
- B. Security rating is enabled in ISFW.
- C. The firewall policy in NGFW-1 has UTM enabled.
- D. ISFW is not connected to FortiAnalyzer and must go through NGFW-1.
Answer: A,C
Explanation:
From the exhibit, ISFW is part of a Security Fabric environment with NGFW-1 as the Fabric Root. In this architecture, FortiGate devices share security intelligence, including logs and detected threats.
ISFW is in a Security Fabric environment:
* Security Fabric allows devices like ISFW to receive threat intelligence from NGFW-1, even if UTM is not enabled locally.
* If NGFW-1 detects malware from IP 10.1.10.1 to 89.238.73.97, this information can be propagated to ISFW and FortiAnalyzer.
The firewall policy in NGFW-1 has UTM enabled:
* Even though ISFW does not have UTM enabled, NGFW-1 (which sits between ISFW and the external network) does have UTM enabled and is scanning traffic.
* Since NGFW-1 detects malware in the session, it logs the event, which is then sent to FortiAnalyzer.
NEW QUESTION # 43
What should be configured to provide hardware-accelerated inter-VDOM traffic?
- A. NPU vlinks
- B. VDOM link
- C. VLAN
- D. Physical link
Answer: A
Explanation:
Comprehensive and Detailed Explanation From Exact Extract documents and Knowledge:
Standard communication between two Virtual Domains (VDOMs) on the same FortiGate is typically handled by a " VDOM link, " which is a virtual interface pair processed by the CPU. However, for high-bandwidth environments where low latency is critical, Fortinet provides NPU vlinks (Network Processing Unit virtual links).
NPU vlinks are a specific type of hardware-accelerated virtual interface that resides directly on the Network Processor (NP6, NP7, etc.). By using NPU vlinks instead of standard software-based VDOM links, traffic between VDOMs can be offloaded to the NPU hardware, which provides significantly higher throughput and near-zero latency by bypassing the FortiGate ' s main CPU entirely. This is the standard recommendation for accelerating " East-West " traffic in a segmented data center or campus environment.
NEW QUESTION # 44
What is the initial step performed by FortiGate when handling the first packets of a session?
- A. Security inspections such as ACL, HPE, and IP integrity header checking
- B. Offloading the packets directly to the content processor (CP)
- C. Data encryption and decryption
- D. Installation of the session key in the network processor (NP)
Answer: A
Explanation:
When FortiGate processes the first packets of a session, it follows a sequence of steps to determine how the traffic should be handled before establishing a session. The initial step involves:
# Access Control List (ACL) checks: Determines if the traffic should be allowed or blocked based on predefined security rules.
# Hardware Packet Engine (HPE) inspections: Ensures that packet headers are valid and comply with protocol standards.
# IP Integrity Header Checking: Verifies if the IP headers are intact and not malformed or spoofed.
Once these security inspections are completed and the session is validated, FortiGate then installs the session in hardware (if offloading is enabled) or processes it in software.
NEW QUESTION # 45

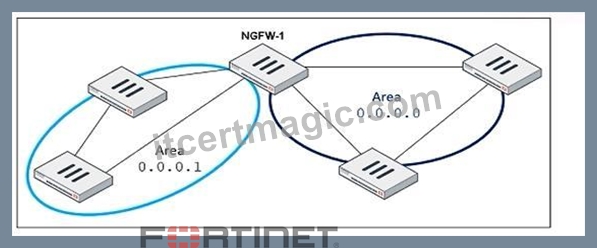

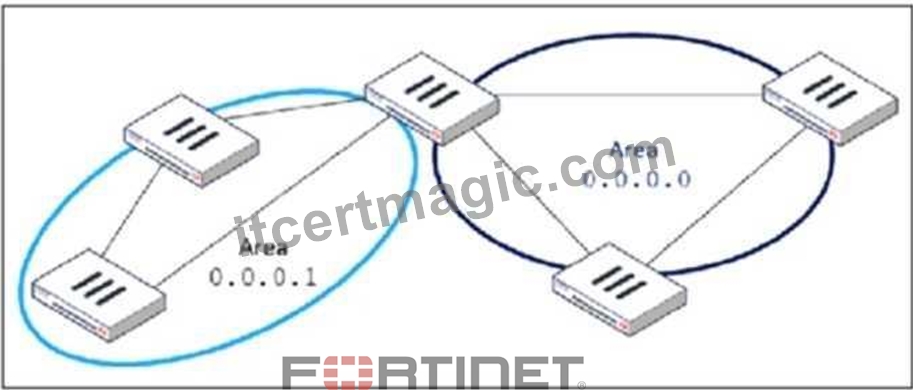

Refer to the exhibit, which shows an OSPF network.
Which types of link-state advertisements (LSA) will NGFW-1 send, if it is a backup designated router (BDR)?
- A. NGFW-1 will send type 1 and type 4 LSAs.
- B. NGFW-1 will send type 1 and type 3 LSAs.
- C. NGFW-1 will send type 1 and type 2 LSAs.
- D. NGFW-1 will send type 1 and type 5 LSAs.
Answer: B
NEW QUESTION # 46
Refer to the exhibit, which shows an OSPF network.
Which configuration must the administrator apply to optimize the OSPF database?
- A. Set an access list in the AS boundary FortiGate.
- B. Set the area 0.0.0.1 to the type STUB in the area border FortiGate.
- C. Set the area 0.0.0.1 to the type NSSA in the area border FortiGate.
- D. Set a route map in the AS boundary FortiGate.
Answer: B
Explanation:
The OSPF database optimization is necessary to reduce unnecessary routing information and improve network performance. In the given topology, Area 0.0.0.1 is a non-backbone area connected to Area 0.0.0.0 (the backbone area) through an Area Border Router (ABR).
To optimize OSPF in this scenario, configuring Area 0.0.0.1 as a Stub Area will:
Reduce the size of the OSPF database by preventing external routes (from outside OSPF) from being injected into Area 0.0.0.1.
Allow only intra-area and inter-area routes, meaning routers in Area 0.0.0.1 will rely on a default route for external destinations.
Improve convergence time and reduce router processing load since fewer LSAs (Link-State Advertisements) are exchanged.
NEW QUESTION # 47
An administrator must optimize the performance of real-time voice and video applications across a WAN link with high packet loss.
Which combination of IPSec phase 1 parameters must the administrator configure to reduce errors and boost application reliability?
- A. fragmentation and fragmentation-mtu
- B. keepalive and keylive
- C. dpd and dpd-retryinterval
- D. fec-ingress and fsc-egrsss
Answer: D
NEW QUESTION # 48

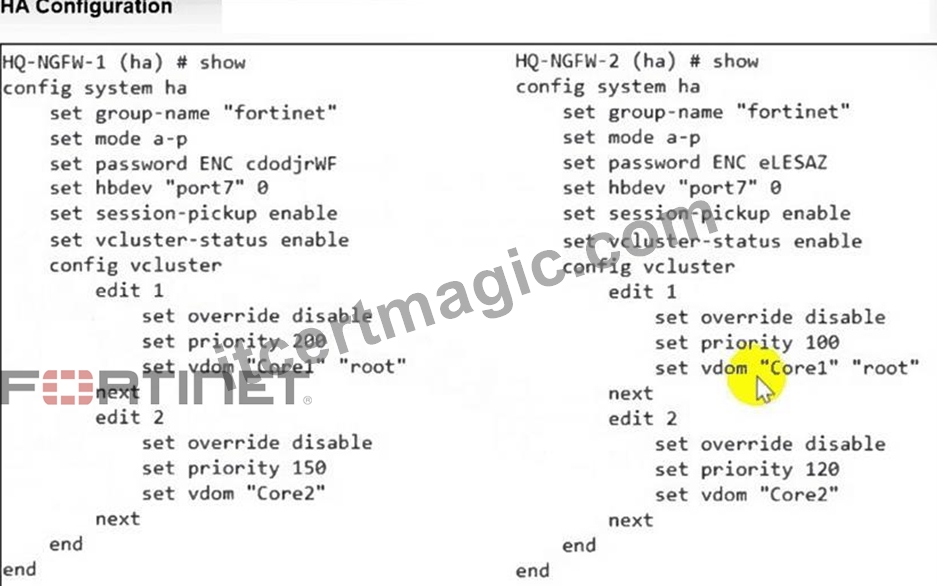

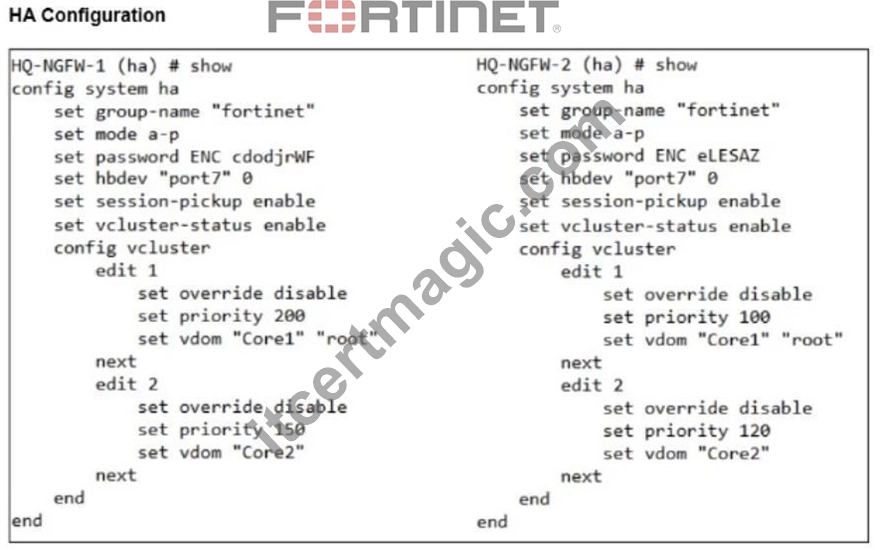

Refer to the exhibit.
An HA configuration of an active-active (A-A) cluster with the same HA uptime is shown. You want HQ- NGFW-2 to handle the Core2 VDOM traffic. Which modification must you make to achieve this outcome?
(Choose one answer)
- A. Change the priority from 120 to 200 for HQ-NGFW-2.
- B. Enable override in virtual cluster 2 for HQ-NGFW-2.
- C. Change the priority from 100 to 160 for HQ-NGFW-2.
- D. Reboot HQ-NGFW-2.
Answer: A
Explanation:
Comprehensive and Detailed Explanation From Exact Extract of Enterprise Firewall 7.6 Administrator documents:
Based on the FortiOS 7.6 Administration Guide and the HA Virtual Clustering documentation, the exhibit demonstrates a Virtual Clustering environment where multiple VDOMs are distributed across an HA cluster.
In a virtual cluster setup, VDOMs are assigned to either virtual cluster 1 (vcluster 1) or virtual cluster 2 (vcluster 2). Each virtual cluster has its own independent primary unit selection process. The primary unit for a virtual cluster is determined based on the standard HA selection criteria: Monitored Interfaces > HA Uptime > Priority > Serial Number.
According to the exhibit:
* Virtual Cluster 1 (edit 1) contains VDOMs "Core1" and "root".
* Virtual Cluster 2 (edit 2) contains VDOM "Core2".
* The HA uptime is stated to be the same for both devices.
* For edit 2 (Core2), HQ-NGFW-1 has a priority of 150, while HQ-NGFW-2 has a priority of 120.
* In both units, override is disabled (default).
Since the uptime is equal and no monitored interfaces are down, the cluster uses the Priority value to select the primary unit for each vcluster. Currently, HQ-NGFW-1 is the primary for Core2 because its priority (150) is higher than HQ-NGFW-2's (120). To ensure HQ-NGFW-2 handles the Core2 traffic, its priority for virtual cluster 2 must be increased to a value higher than 150. Option C (changing the priority from 120 to 200) achieves this.
NEW QUESTION # 49
Which two configurations are mandatory for an auto-discovery VPN (ADVPN) implementation on a hub? (Choose two.)
- A. set add-route must be enabled to add routes.
- B. set net-device must be disabled to avoid dynamic interface creation.
- C. The remote-ip must be on a different IP address from the overlay subnet.
- D. An overlay IP address with a mask of /32 must be assigned to the IPsec virtual interface.
Answer: B,D
NEW QUESTION # 50
A company's guest internet policy, operating in proxy mode, blocks access to Artificial Intelligence Technology sites using FortiGuard. However, a guest user accessed a page in this category using port 8443.
Which configuration changes are required for FortiGate to analyze HTTPS traffic on nonstandard ports like 8443 when full SSL inspection is active in the guest policy?
- A. Add a URL wildcard domain to the website CA certificate and use it in the SSL/SSH Inspection Profile.
- B. Administrators can block traffic on nonstandard ports by enabling the SNI check in the SSL/SSH Inspection Profile.
- C. In the Protocol Port Mapping section of the SSL/SSH Inspection Profile, enter 443, 8443 to analyze both standard (443) and non-standard (8443) HTTPS ports.
- D. To analyze nonstandard ports in web filter profiles, use TLSv1.3 in the SSL/SSH Inspection Profile.
Answer: C
Explanation:
When FortiGate is operating in proxy mode with full SSL inspection enabled, it inspects encrypted HTTPS traffic by default on port 443. However, some websites may use non-standard HTTPS ports (such as 8443), which FortiGate does not inspect unless explicitly configured.
To ensure that FortiGate inspects HTTPS traffic on port 8443, administrators must manually add port 8443 in the Protocol Port Mapping section of the SSL/SSH Inspection Profile. This allows FortiGate to treat HTTPS traffic on port 8443 the same as traffic on port 443, enabling proper inspection and enforcement of FortiGuard category-based web filtering.
NEW QUESTION # 51

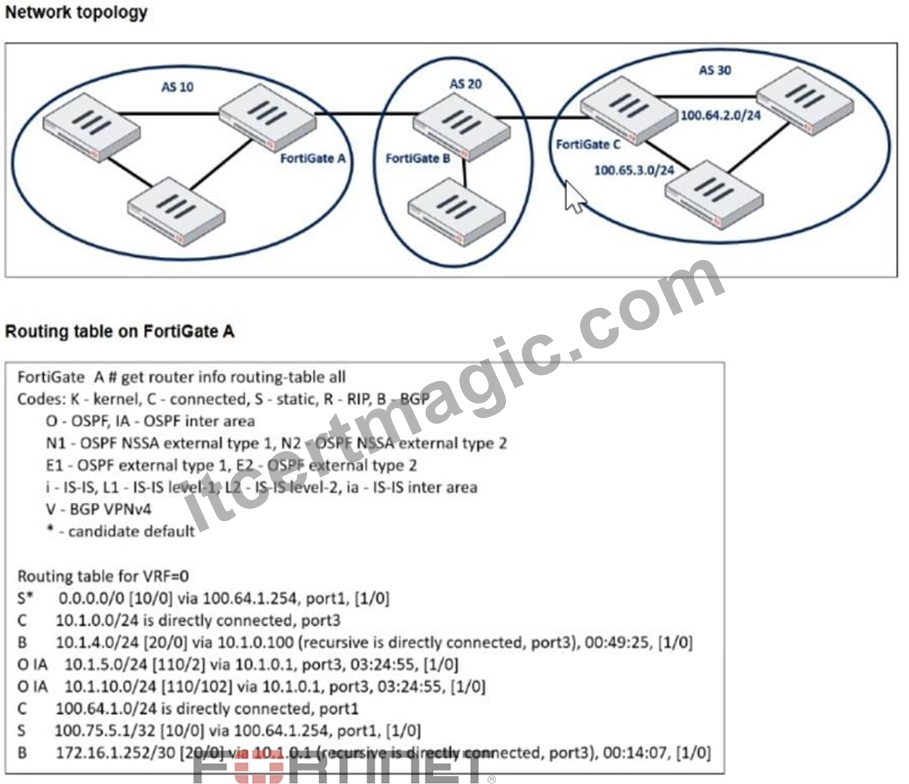

Refer to the exhibit, which shows a corporate network and a new remote office network.
An administrator must integrate the new remote office network with the corporate enterprise network.
What must the administrator do to allow routing between the two networks?
- A. The administrator must configure a static route to the subnet 192.168.l.0/24 on the corporate FortiGate device.
- B. The administrator must implement BGP to inject the new remote office network into the corporate FortiGate device
- C. The administrator must configure virtual links on both FortiGate devices.
- D. The administrator must implement OSPF over IPsec on both FortiGate devices.
Answer: D
Explanation:
In this scenario, the corporate network and the new remote office network need to communicate over the Internet, which requires a secure and dynamic routing method. Since both networks are using OSPF (Open Shortest Path First) as the routing protocol, the best approach is to establish an OSPF over IPsec VPN to ensure secure and dynamic route propagation.
OSPF is already running on the corporate network, and extending it over an IPsec tunnel allows dynamic route exchange between the corporate FortiGate and the remote office FortiGate. IPsec provides encryption for traffic over the Internet, ensuring secure communication. OSPF over IPsec eliminates the need for manual static routes, allowing automatic route updates if networks change.
The new remote office's 192.168.1.0/24 subnet will be advertised dynamically to the corporate network without additional configuration.
NEW QUESTION # 52

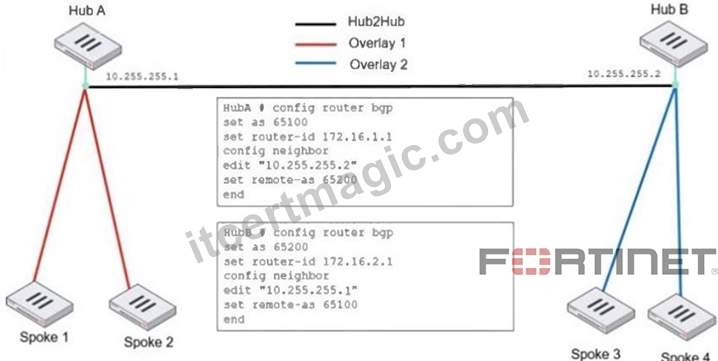

Refer to the exhibit, which shows an ADVPN network.
An administrator must configure an ADVPN using IBGP and EBGP to connect overlay network 1 with 2.
What two options must the administrator configure in BGP? (Choose two.)
- A. set next-hop-self enable
- B. set ebgp-enforce-multrhop enable
- C. set ibgp-enforce-multihop advpn
- D. set attribute-unchanged next-hop
Answer: A,B
Explanation:
In this ADVPN (Auto-Discovery VPN) network, there are two hubs (Hub A and Hub B) connected via EBGP, while IBGP is used within each overlay. To ensure proper BGP routing between the overlays, the administrator must configure specific BGP options..
set ebgp-enforce-multihop enable
By default, EBGP requires directly connected neighbors. Since Hub A and Hub B are not directly connected but reach each other over an IPsec tunnel, multihop must be enabled for EBGP sessions to work.
set next-hop-self enable
In IBGP, the next-hop attribute does not change by default. When an IBGP route is advertised from a spoke to another hub or spoke, the next-hop needs to be updated to ensure proper reachability. Enabling next-hop-self forces the BGP speaker to advertise itself as the next-hop, ensuring that all spokes properly reach routes across the overlays.
NEW QUESTION # 53
You configured the FortiGate devices in an enterprise network to join the Fortinet Security Fabric. You have a list of IP addresses that must be blocked by the data center firewall. This list is updated daily.
How can you automate updates to the firewall policy to add the IP addresses from the daily updated list?
- A. With a CLI script in FortiManager
- B. With a Security Fabric automation
- C. With metadata variables in FortiManager
- D. With an external connector from External Feeds
Answer: D
NEW QUESTION # 54
You are trying to efficiently deploy ADVPN within the enterprise network. Which two approaches can facilitate this deployment? (Choose two.)
- A. On FortiManager, enable ADVPN on VPN Manager.
- B. On FortiGate, connect only the links with the best status.
- C. FortiManager, activate the recommended IPsec tunnel provisioning templates and enable ADVPN.
- D. On FortiGate, utilize loopback interfaces to reduce the number of routes and peers.
Answer: C,D
Explanation:
Using loopback interfaces on FortiGate helps simplify ADVPN design by reducing the number of peer definitions and routing dependencies, which makes large deployments easier to scale and manage.
FortiManager can efficiently deploy ADVPN by using the recommended IPsec tunnel provisioning templates with ADVPN enabled, which standardizes and automates rollout across the enterprise network.
NEW QUESTION # 55

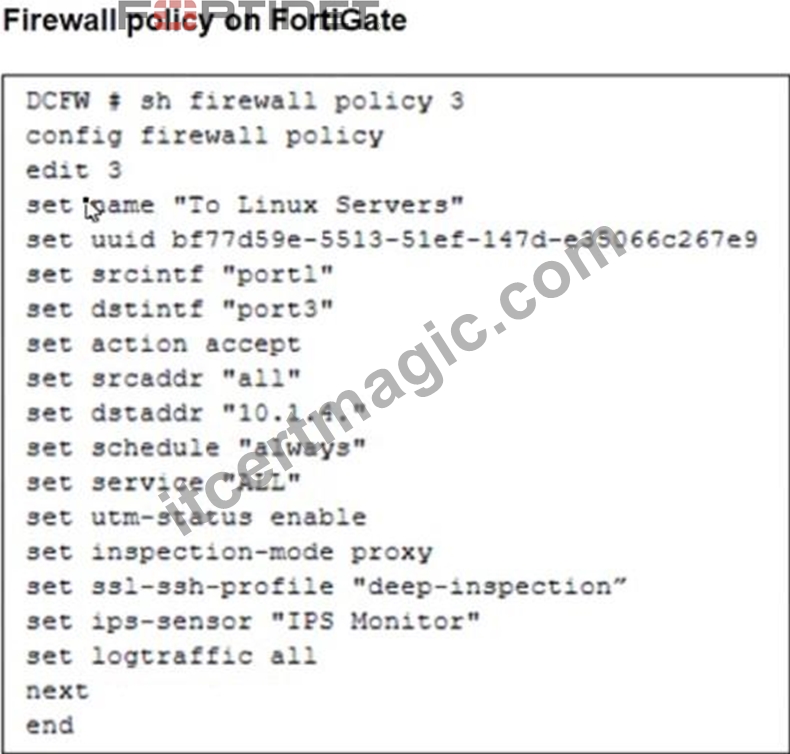

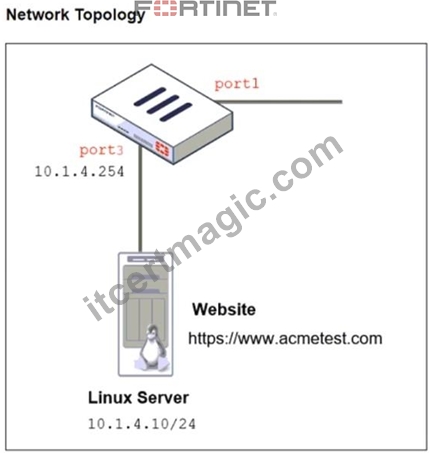

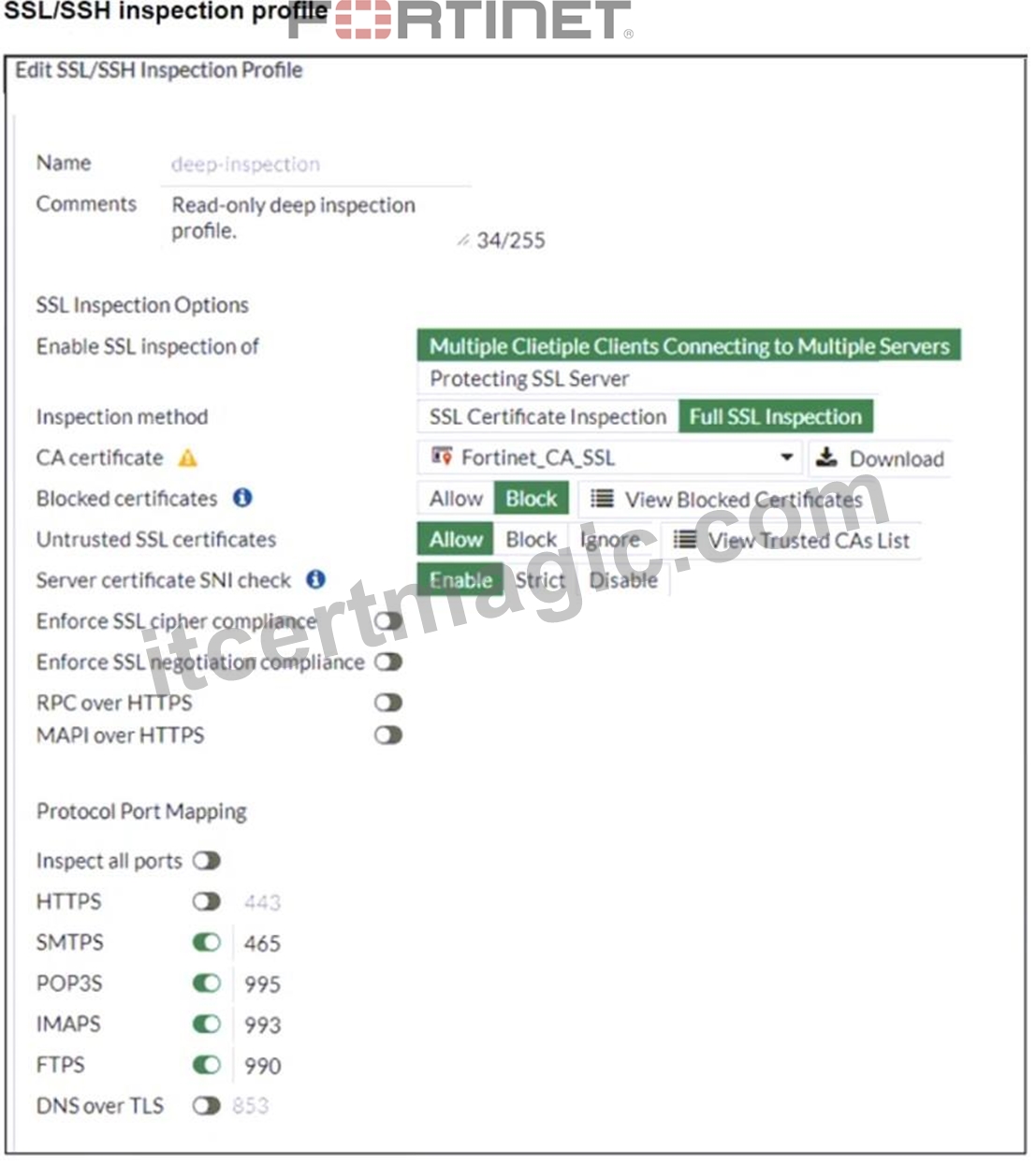

Refer to the exhibits. The exhibits show a network topology, a firewall policy, and an SSL/SSH inspection profile configuration.
Why is FortiGate unable to detect HTTPS attacks on firewall policy ID 3 targeting the Linux server?
- A. The administrator must enable HTTPS in the protocol port mapping of the deep- inspection SSL/SSH inspection profile.
- B. The administrator must enable SSL inspection of the SSL server and upload the certificate of the Linux server website to the SSL/SSH inspection profile.
- C. The administrator must set the policy to inspection mode to analyze the HTTPS packets as expected.
- D. The administrator must enable cipher suites in the SSL/SSH inspection profile to decrypt the message.
Answer: B
Explanation:
The FortiGate SSL/SSH inspection profile is configured for Full SSL Inspection, which is necessary to analyze encrypted HTTPS traffic. However, the firewall policy is protecting an SSL server (the Linux server hosting the website), and currently, the SSL/SSH profile only applies to client-side SSL inspection.
To detect HTTPS-based attacks targeting the Linux server:
# FortiGate must act as an SSL intermediary to inspect encrypted traffic destined for the web server.
# The administrator must upload the SSL certificate of the Linux web server to FortiGate so that the server-side SSL inspection can decrypt incoming HTTPS traffic before analyzing it.
NEW QUESTION # 56
A company that acquired multiple branches across different countries needs to install new FortiGate devices on each of those branches. However, the IT staff lacks sufficient knowledge to implement the initial configuration on the FortiGate devices.
Which three approaches can the company take to successfully deploy advanced initial configurations on remote branches? (Choose three.)
- A. Apply Jinja in the FortiManager scripts for large-scale and advanced deployments.
- B. Use metadata variables to dynamically assign values according to each FortiGate device.
- C. Use provisioning templates and install configuration settings at the device layer.
- D. Add FortiGate devices on FortiManager as model devices, and use ZTP or LTP to connect to FortiGate devices.
- E. Use the Global ADOM to deploy global object configurations to each FortiGate device.
Answer: B,C,D
Explanation:
Use metadata variables to dynamically assign values according to each FortiGate device:
Metadata variables in FortiManager allow device-specific configurations to be dynamically assigned without manually configuring each FortiGate. This is especially useful when deploying multiple devices with similar base configurations.
Use provisioning templates and install configuration settings at the device layer:
Provisioning templates in FortiManager provide a structured way to configure FortiGate devices. These templates can define interfaces, policies, and settings, ensuring that each device is correctly configured upon deployment.
Add FortiGate devices on FortiManager as model devices, and use ZTP or LTP to connect to FortiGate devices:
Zero-Touch Provisioning (ZTP) and Local Touch Provisioning (LTP) help automate the deployment of FortiGate devices. By adding devices as model devices in FortiManager, configurations can be pushed automatically when devices connect for the first time, reducing manual effort.
NEW QUESTION # 57
Refer to the exhibit.
A network topology and a FortiGate routing table is shown.
What must you configure in the BGP section to add only the subnet 100.64.2.0/24in the routing table of FortiGate_A?
- A. Configure BGP route redistribution on FortiGate_B.
- B. Configure connected routes redistribution on FortiGate_C.
- C. Configure the 100.64.2.0/24 network on FortiGate_C.
- D. Configure route-map-in on FortiGate_A.
Answer: C
Explanation:
A BGP router originates and advertises a prefix only when that exact network statement is configured under BGP and the route exists in the local routing table. To ensure that 100.64.2.0/24 is propagated to FortiGate_A, the prefix must be explicitly configured as a BGP network on FortiGate_C, the AS 30 device that owns the subnet.
NEW QUESTION # 58
......
Fortinet FCSS_EFW_AD-7.6 Exam Syllabus Topics:
| Topic | Details |
|---|---|
| Topic 1 |
|
| Topic 2 |
|
| Topic 3 |
|
| Topic 4 |
|
| Topic 5 |
|
Get 100% Authentic Fortinet FCSS_EFW_AD-7.6 Dumps with Correct Answers: https://www.itcertmagic.com/Fortinet/real-FCSS_EFW_AD-7.6-exam-prep-dumps.html
New Training Course FCSS_EFW_AD-7.6 Tutorial Preparation Guide: https://drive.google.com/open?id=1eFxqavhc5y6PcLZ1loxB9rVxVM269rRh
